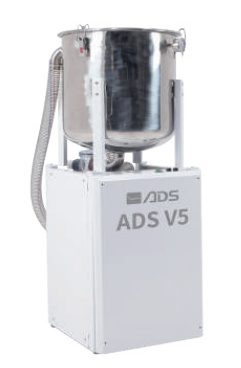

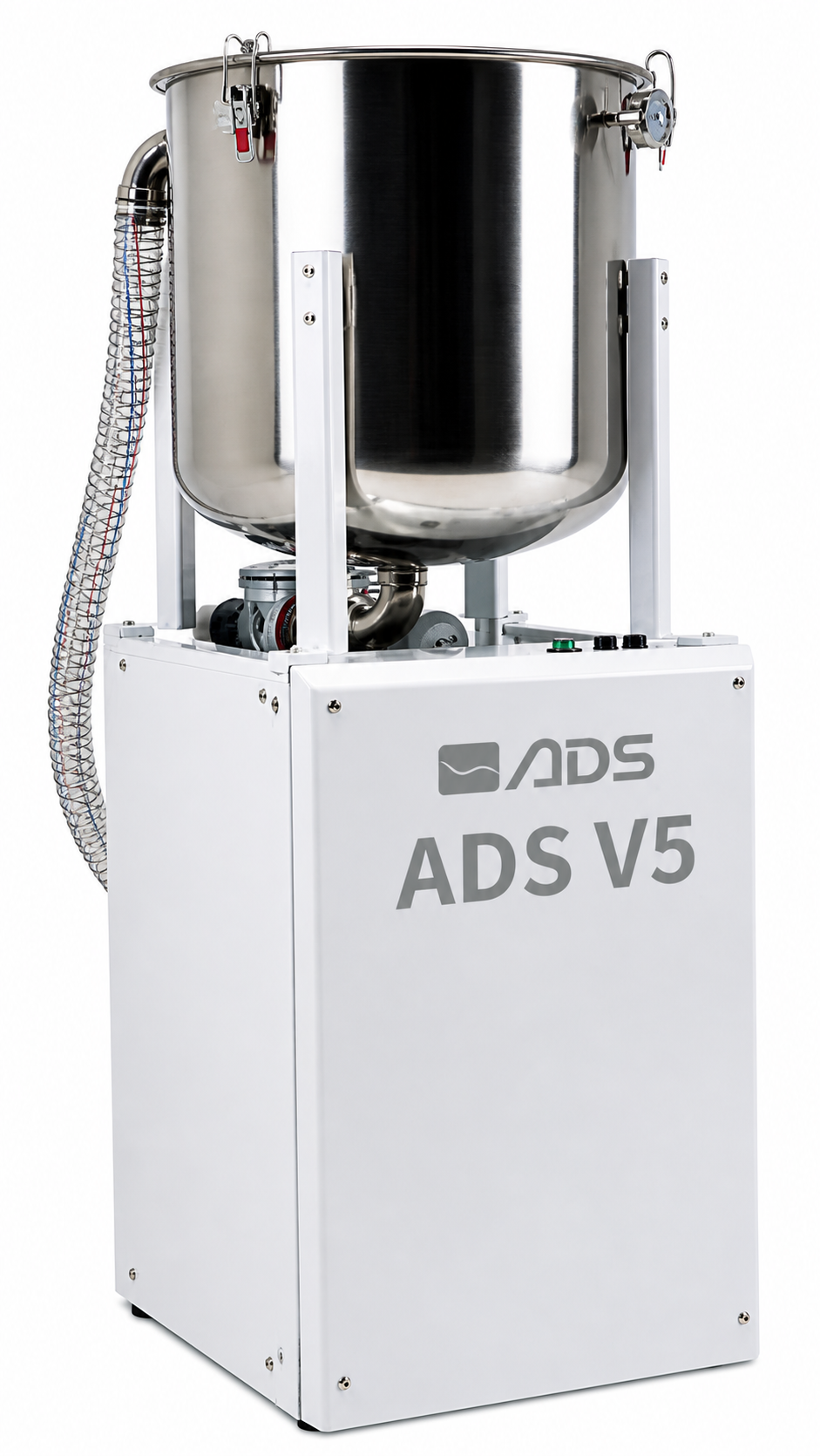

The ADS V5 Dry Vacuum System is designed to provide stable, continuous suction and airflow for high-quality dental care. Built for efficiency and dependable daily performance, this system helps support smooth operatory function while offering a slim, space-saving design ideal for professional environments.

With support for 5 to 7 users, 2.95 total horsepower, and reliable vacuum performance, the ADS V5 is an excellent solution for dental practices that need strong suction, durability, and efficient use of space.

Key Features:

• Model: ADS V5

• Part Number: A125001

• Designed to provide stable and continuous suction and airflow

• Slim design for space-saving installation

• Supports 5 to 7 users

• Number of vacuums: 1

• Total horsepower: 2.95 HP

• Vacuum: -7.5" Hg

• Voltage: 220V / 60 Hz

• Total amps: 10

• Circuit breaker: 25 amps

• Maximum flow: 44 CFM @ 7.5" Hg

• Noise level: 72 dBa

• Tank size (H x W x D): 17.9" x 17.9" x 19.5"

• Tank capacity: 18.1 gal

Dimensions:

• Overall dimensions: 48.7" x 18" x 19.3"

Shipping Weight:

• 262 lbs

Warranty:

• 5-year warranty
