The Classic Post Mount Doctor’s System is designed to provide reliable chairside functionality and efficient workflow for modern dental operatories. With its post-mounted design and integrated control features, this system offers a practical solution for everyday clinical use while helping maintain an organized treatment area.
Built with a classic dentist’s control head, this unit includes 3 auto H.P. controls, individual water coolant controls, and master handpiece air coolant adjustment for dependable instrument management. It also features asepsis handpiece tubing, master on/off switch, 1 doctor syringe, Wet/Dry foot control, a stainless steel tray with non-slip pad, and a flex arm air brake switch for added convenience and flexibility.
Key Features:
Part Number: A0502523

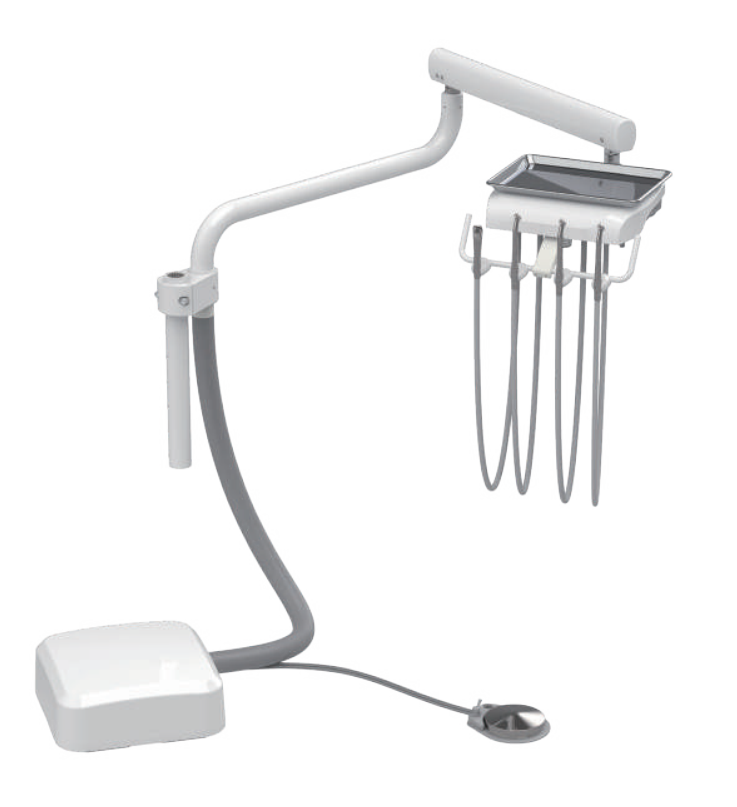

Classic post mount doctor’s system
3 auto H.P. controls
Individual water coolant controls
Master handpiece air coolant adjustment
Asepsis handpiece tubing
Master on/off switch
1 doctor syringe
Wet/Dry foot control
Stainless steel tray with non-slip pad
Flex arm air brake switch
24" rigid arm
2" diameter post mount clamp
Junction box with valves
Available Options:
HP Fiber optic system with 1 tubing (6 pin) — Part Number: A121532
HP Fiber optic system with 2 tubings (6 pin) — Part Number: A121533
Built-in scaler with LED — Part Number: A120403
Additional 4th handpiece tubing for Classic dentist’s control — Part Number: 8018895
Bien Air MCX Built In System without touchpad — Part Number: A121963
Bien Air MCX Built In System with touchpad — Part Number: A121973
Specifications:
Unit of measure: inches

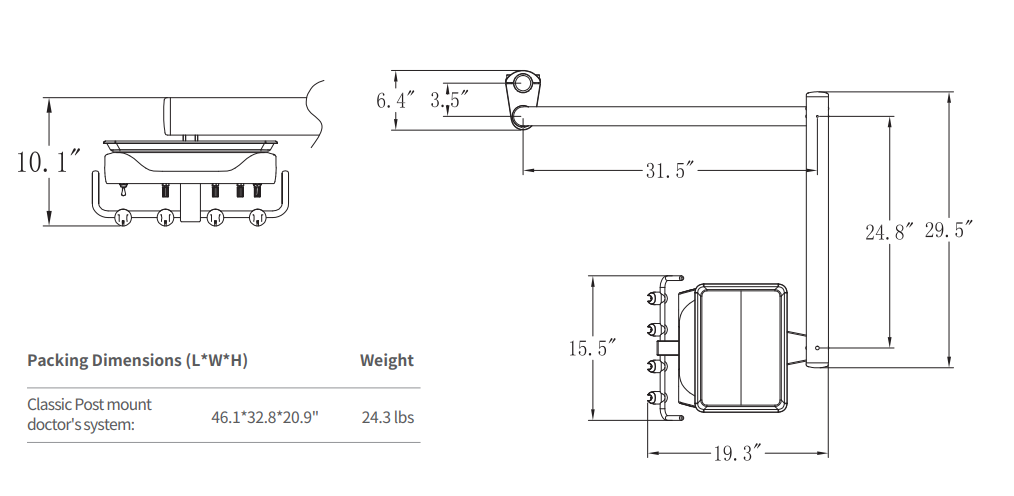

Packing dimensions (L x W x H): 46.1" x 32.8" x 20.9"
