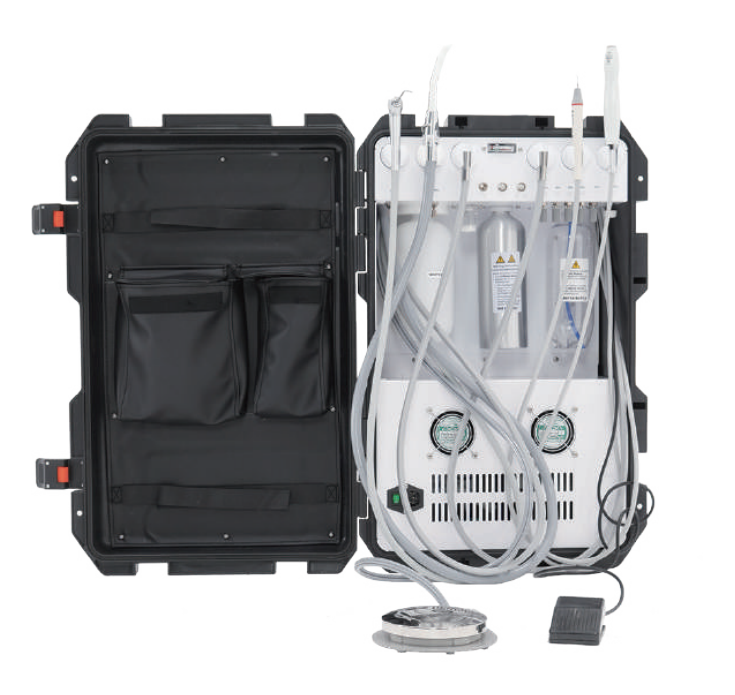

The Portable Delivery System is designed to provide a compact and convenient operatory solution for flexible dental use. Housed in an aluminum case, it includes essential components for chairside functionality in a portable format, making it a practical option for mobile, temporary, or space-conscious clinical setups.

Standard features include an SE tip, clean/dirty bottle, operation panel, foot control, air tank, low/high speed switch, 1 doctor’s syringe, and HP tubing. The upgraded version also includes 1 LED curing light and 1 ultrasonic scaler, which are not included in the standard configuration.

Available Configurations:

• Standard — Part Number: A121537
• With scaler and curing light — Part Number: A121538

Specifications:

• Voltage: AC 115V 60Hz
• Power: 690W
• Fuse: 10A
• Vacuum: ≤ -86 kPa
• Water suction rate: ≥ 1.5 L/min
• Compressor air flow: ≥ 50 L/min
• Compressor air pressure: 0.55 MPa
• Noise: < 65 dB
• Opening angle: 180°
• Product size: 18.2" x 12.8" x 29.3"

Packing Dimensions:

• A121537: 20" x 15" x 32" — 70 lbs
• A121538: 20" x 15" x 32" — 72 lbs
