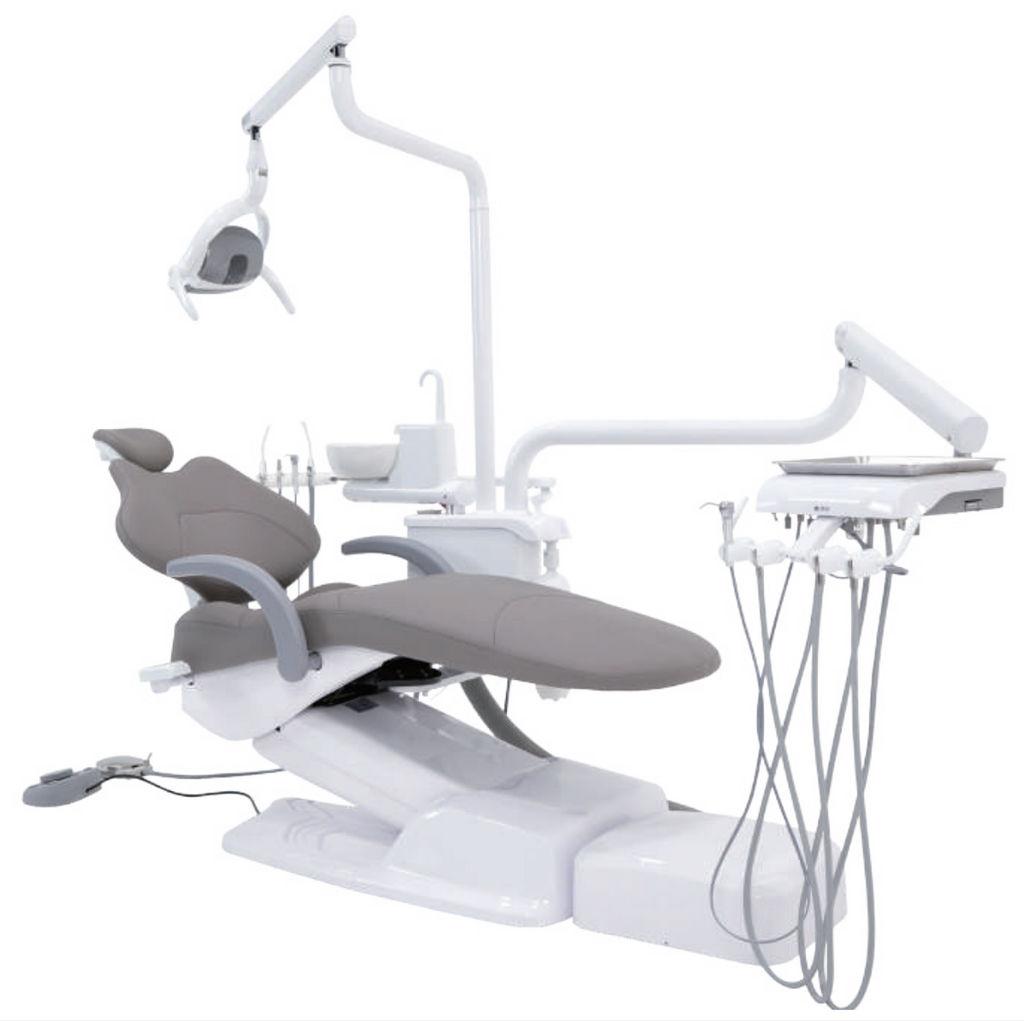

The AJ12 Classic 101 Operatory Package is a complete over-the-patient (OTP) dental operatory package with cuspidor, designed to deliver comfort, efficiency, and dependable daily performance for modern dental practices. Built around the AJ12 electromechanical patient chair, this package combines ergonomic seating, an integrated delivery system, assistant’s instrumentation, a cuspidor, and LED lighting to create a practical and reliable treatment setup.

At the center of the package is the AJ12 EL Chair, featuring 3 programmable positions, fiber leather upholstery, an articulating headrest, and a wide backrest for enhanced patient comfort. The system also includes the Classic 101 delivery system with PMU and cuspidor, giving practices a streamlined solution for doctor and assistant workflow.

Package Includes:

• AJ12 EL Chair
  Electromechanical patient chair with 3 programmable positions and fiber leather upholstery
• Classic 101 Delivery System
  Classic over-the-patient (OTP) dental unit with PMU and cuspidor
• Classic Post Mount Dentist’s Control
  Includes 3 auto handpiece controls, 1 doctor syringe, Wet/Dry foot control, stainless steel tray with non-slip pad, rigid arm, and flex arm
• Classic 101 Post Mounted Utility (PMU) with Cuspidor
  Includes cuspidor, steel side box, city water / bottled water system, water outlet and air quick disconnect, telescoping assistant’s arm with 2 HVE, 1 SE, and 1 syringe, plus junction box with valves
• Post Mount Whale LED Light
  Touchless sensor LED light with 30" light post
• Chair Adapter B
  Chair adapter for ADS chairs

Chair Features:

• 3 programmable chair positions
• Articulating headrest
• Vertical forward-turning armrest
• Steel backrest stand
• Steel base plate
• Chair safety switch
• Wide backrest
• Upgraded fiber leather
• One touchpad
• Foot control

Delivery System Features:

• Classic dentist’s control head with 3 auto handpiece controls
• Individual water coolant controls
• Master handpiece air coolant adjustment
• Asepsis handpiece tubing
• Master on/off switch
• 1 doctor syringe
• Remote toggles for cup fill and bowl rinse
• Wet/Dry foot control
• Stainless steel tray with non-slip pad
• Flex arm air brake switch
• Porcelain cuspidor bowl with strainer
• Cup fill and bowl rinse toggles

Utility & Assistant’s Features:

• Classic 101 post mounted utility (PMU) with steel side box
• City water / bottled water system
• Water outlet and air quick disconnect
• Solids collector
• 2 HVE, 1 SE, and 1 syringe on telescoping assistant’s control
• Junction box with air/water filters, regulators, and master shut-off valves
• 5 ft. umbilical

Lighting:

• Post mounted LED light with sensor control
• 3-level intensity adjustment

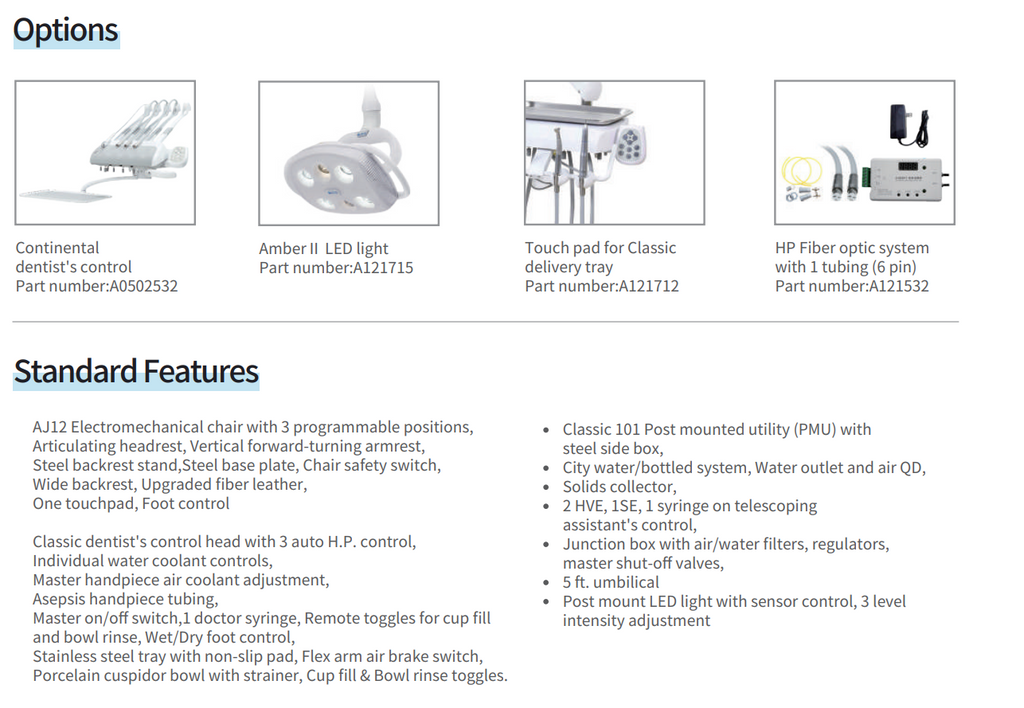

Available Options:

• HP Fiber Optic System with 1 tubing (6 pin) — Part Number: A121532
• HP Fiber Optic System with 2 tubings (6 pin) — Part Number: A121533
• Touch pad for Classic delivery tray — Part Number: A121712
• ADS post mount monitor bracket — Part Number: A120501
• Built-in scaler with LED — Part Number: A120403
• Built-in curing light — Part Number: A120301
• Additional umbilical per foot for Classic 101 — Part Number: A121915
• Amber II LED light — Part Number: A121715
• Continental dentist’s control — Part Number: A0502532
• D3 Doctor Stool — Part Number: A080103
• N4 Assistant Stool — Part Number: A080224
• Additional 4th handpiece tubing — Part Number: 8018895
• Bien Air MCX Built In System without touchpad — Part Number: A121963
• Bien Air MCX Built In System with touchpad — Part Number: A121973

Packing Dimensions:

• Chair: 47.6" x 30.5" x 31.3"
• Upholstery: 50.4" x 25" x 8.9"
• Classic Dentist’s Control: 30.4" x 19.1" x 12"
• PMU: 43.9" x 21.1" x 13.7"
• Dental Light: 31.1" x 18.1" x 7.1"
